Starfire's GRID GDX1 is a Designer's Dream

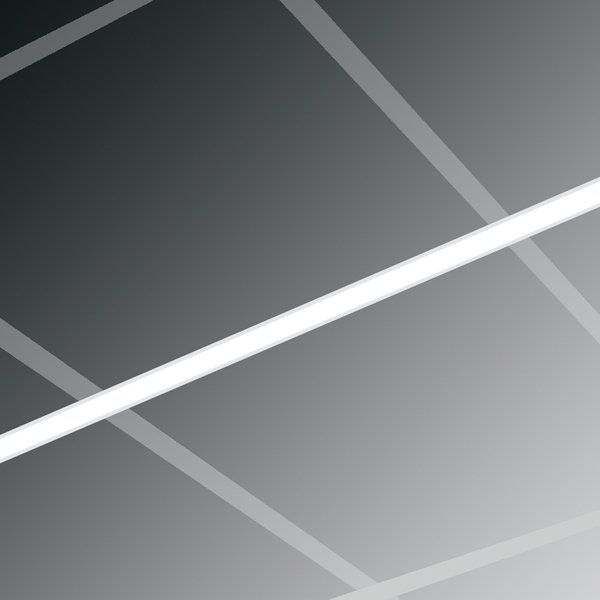

A low profile, nominal 1" linear grid mount lighting system comprised of modular components. Designed for the freedom and flexiblity to create any light pattern on grid ceilings.
Features
Fixtures fabricated to any length without custom engineering
Regressed snap-in high performance acrylic lens
Plaster, flanged or flangeless trim
Suitable for all standard grid ceilings
High efficiency, low cost, dynamic Tunable White option
Fixture Specifications
Housing / Trim: Heavy-duty extruded aluminum
Finish: White
LED Specifications
Choice of lumen output levels: Standard, High, Max. or Custom from <300 to >900 lm/ft
Full range dimming at any output
2700K, 3000K, 3500K, 4000K and Tunable White: 2700K-6500K
80+ or 90+ CRI
50,000+ hours at Max. output
Electrical
Remote electronic driver
Integral wiring bus between fixture sections
1% dimming: 0-10V control included, (standard)
Drivers with full dimming range at any output choice
Options
Eco, DALI, and wireless control interfaces
Remote occupancy sensor
Daylight control module
Emergency ballast
Certifications
UL Listed damp location
Union Made in the USA
